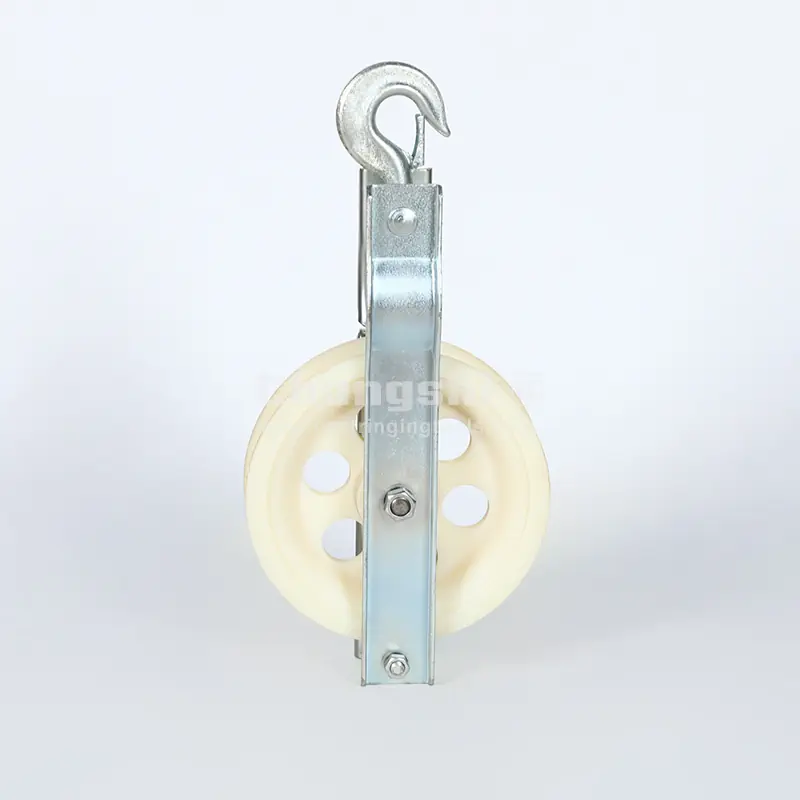

Single Sheave Conductor Pulley
-
Features:
1.Select high-quality bearings
2.Galvanizing treatment of steel structures

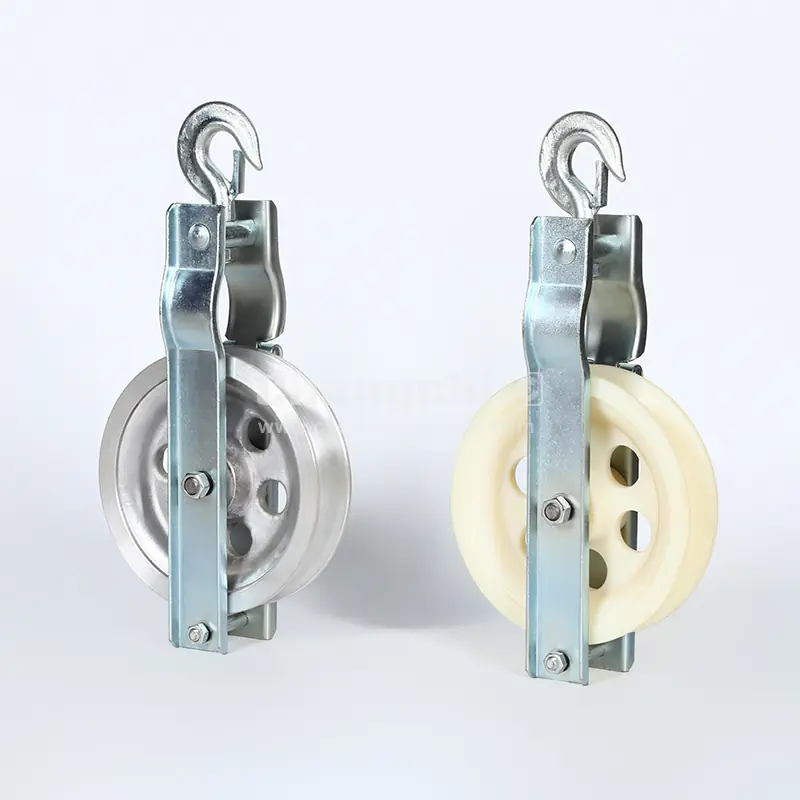

3.High Quality MC Nylon Sheaves or Aluminum Sheaves can be chosen.
4.Hook Type or U Type Connect Design can be chosen.
5.Special Requirements can be customized.
Usage: Suitable for the over head transmission conductor lines.
Sample:Contact us for free samples
- Single Sheave Stringing Block Single Sheave Conductor Pulley Conductor Pulley with Grounding Device 916mm Large Diameter Conductor Pulley 822mm Large Diameter Conductor Pulley 660mm Large Diameter Conductor Pulley 508mm Large Diameter Conductor Pulley
Description
Stringing Blocks, also known as aerial rollers or pulley blocks, are used for overhead conductor installation.
They feature 1, 3, or 5 sheaves made of nylon or Aluminum alloy, supported by a galvanized or coated steel frame.
The central sheave can be made of cast steel for enhanced durability, especially in extreme climates.
These blocks are designed for single, double, or bundled conductor stringing and ensure smooth passage of anti-twist wire ropes during overhead line construction.
Main Technical Information:
| Model | Sheave Diameter | Sheave Width | Suitable Conductor | Safety Work Load(kN) | Weight(kg) | Remark |
| SHD-120X35 | 120 | 30 | ACSR25~70 | 5 | 1.5 | Aluminum Sheave |
| SHD-160X40 | 160 | 40 | ACSR95~120 | 10 | 2.5 | |
| SHD-200X40 | 200 | 40 | ACSR150~240 | 15 | 4 | |
| SHD-200X60 | 200 | 60 | ACSR150~240 | 15 | 4.5 | |
| SHD-250X60 | 250 | 60 | ACSR300~400 | 20 | 6 | |
| SHD-320X60 | 320 | 60 | ACSR300~400 | 20 | 9.5 | |
| SHD-400X80 | 400 | 80 | ACSR300~400 | 20 | 15 | |
| SHDN-120X35 | 120 | 30 | ACSR25~70 | 5 | 1.5 | High Quality MC Nylon Sheave |
| SHDN-160X40 | 160 | 40 | ACSR95~120 | 10 | 2.5 | |
| SHDN-200X40 | 200 | 40 | ACSR150~240 | 15 | 3.5 | |
| SHDN-200X60 | 200 | 60 | ACSR150~240 | 15 | 4 | |
| SHDN-250X60 | 250 | 60 | ACSR300~400 | 20 | 4.5 | |
| SHDN-320X60 | 320 | 60 | ACSR300~400 | 20 | 6.5 | |
| SHDN-400X80 | 400 | 80 | ACSR300~400 | 20 | 13 |
