Single Sheave Stringing Block
-
Features:
1. Sheave:Made of reinforced MC nylon, it has the characteristics of light weight, good wear resistance, and long service life
2. Bearings:Choose high-quality bearings from Harbin Bearing Factory, Wafangdian Bearing Factory, or Luoyang Bearing Factory, which have a long service life.
3. Frame:According to different sheave sizes, it is processed and made of national standard #10-16 channel steel, welded, shot blasted and then galvanized for a smooth surface and better anti-corrosion effect.

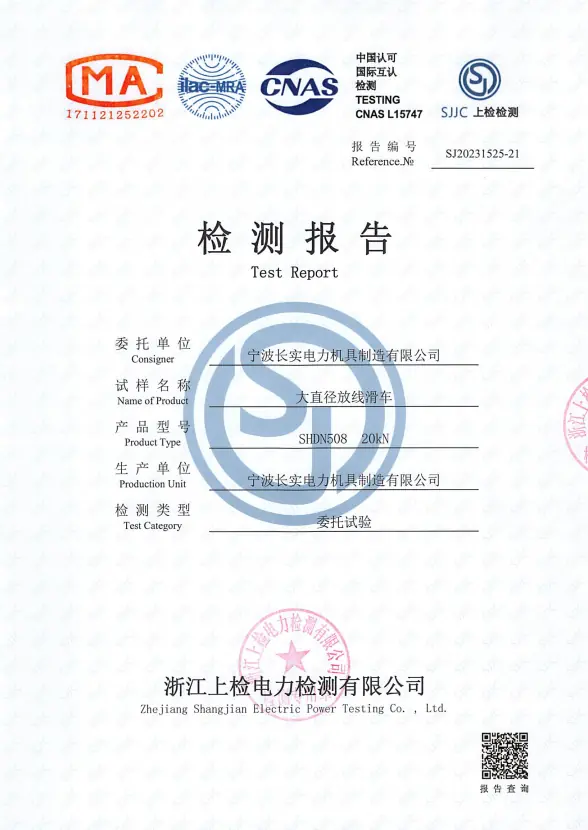

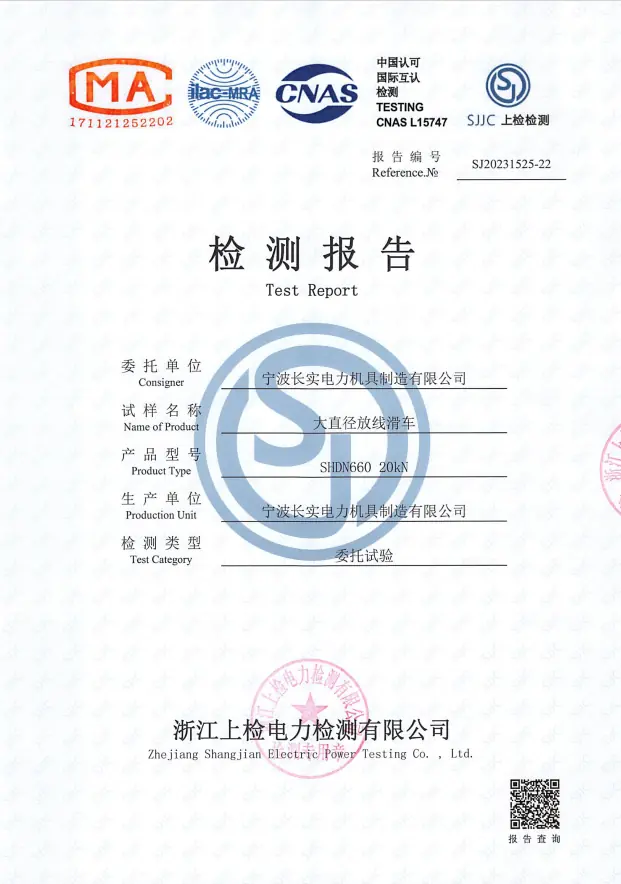

4. According to Chinese national standards, it has 3 times safety factor. The product has been tested by a third-party testing company
Sample:Contact us for free samples
- Single Sheave Stringing Block Single Sheave Conductor Pulley Conductor Pulley with Grounding Device 916mm Large Diameter Conductor Pulley 822mm Large Diameter Conductor Pulley 660mm Large Diameter Conductor Pulley 508mm Large Diameter Conductor Pulley
Description
Our Stringing Blocks are engineered for overhead conductor stringing, featuring 1, 3, or 5 nylon or Aluminum sheaves and a robust galvanized steel frame.
The center wheel is optionally made of cast steel to reduce abrasion from anti-twist wire rope and enhance performance in harsh environments.
Ideal for single to five bundled conductors, these pulley blocks are essential for reliable power line construction.
Main Technical Information:
| Model | Rated Load | Applicable Conductor | Sheave Size | Other option |
SHDN508 | 20kN | ≤ACSR400 | 508×75mm | 508×100mm |
SHDN660 | 20kN | ≤ACSR500 | 660×100mm | 660×110mm |
SHDN822 | 30kN | ≤ACSR630 | 822×110mm | 822×120mm |
SHDN916 | 50kN | ≤ACSR720 | 916×110mm | 916×120mm |

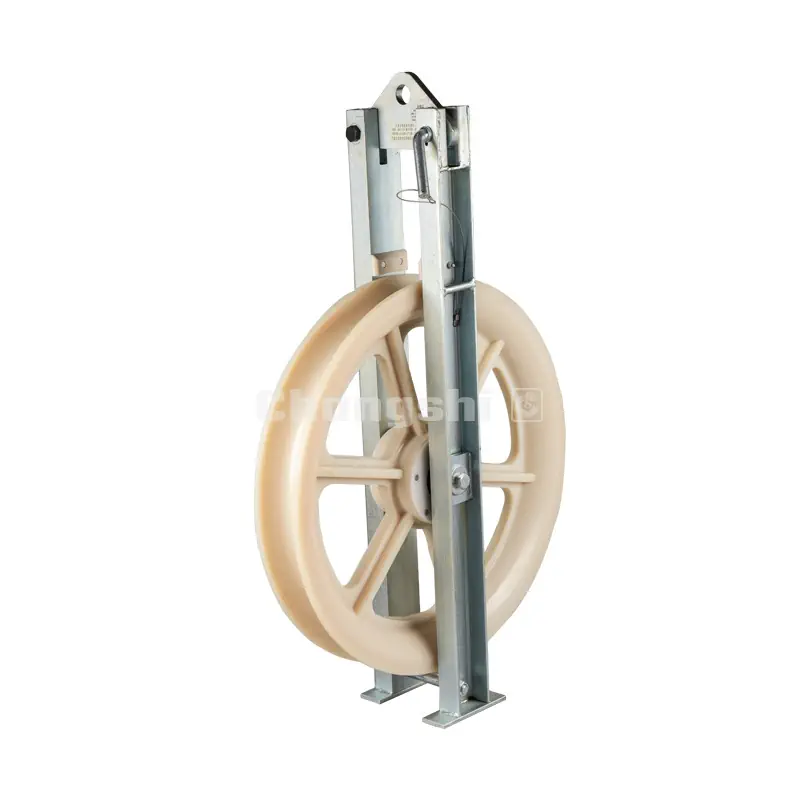

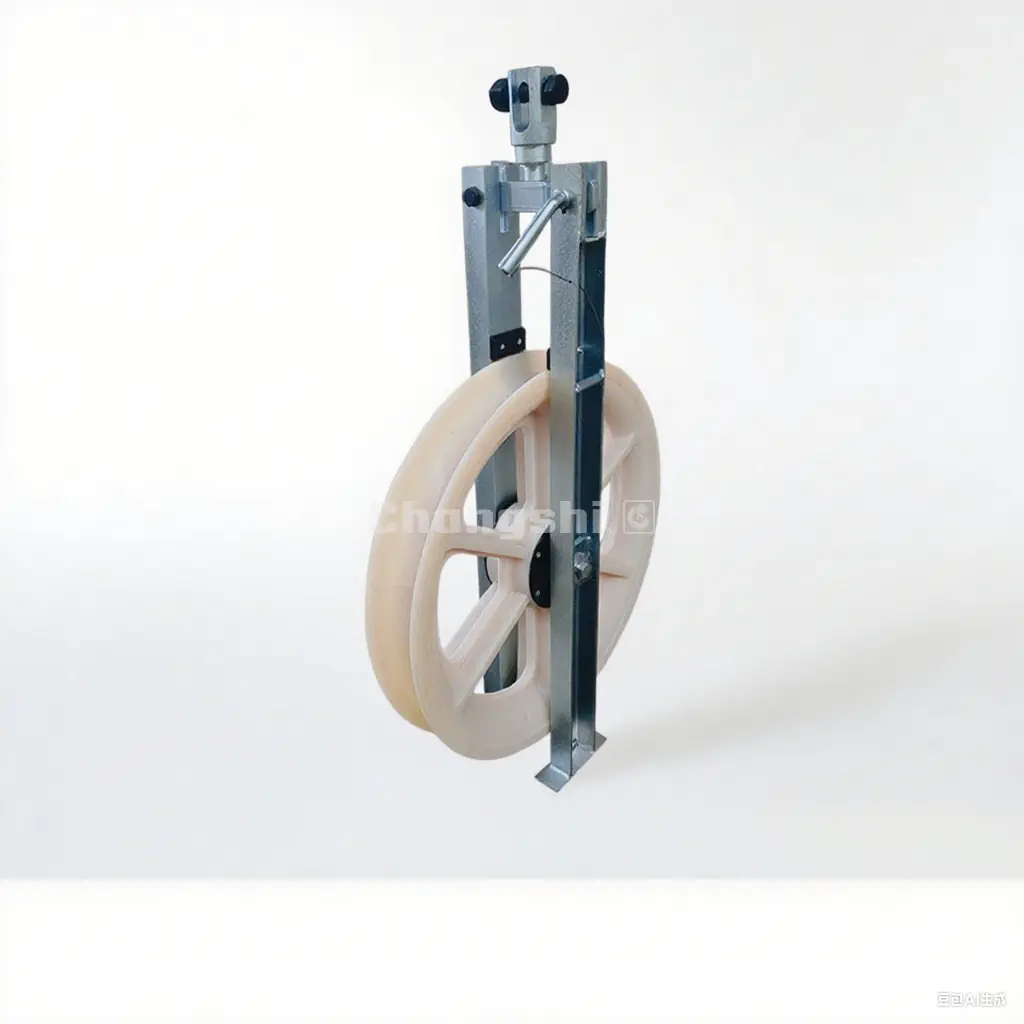

Remark:According the different connection methods, Single Sheave stringing Pulleys have two designs: triangular plates and rotating heads.
